  • Name£ŗPneumatic Expanding Lug Air Shaft
  • Model£ŗlug type air shaft
  • Payment£ŗT/T
  • Delivery: FOB Shenzhen
  • Package£ŗCarton or can be customized
  • Delivery date: 7-10 days

Detail Description

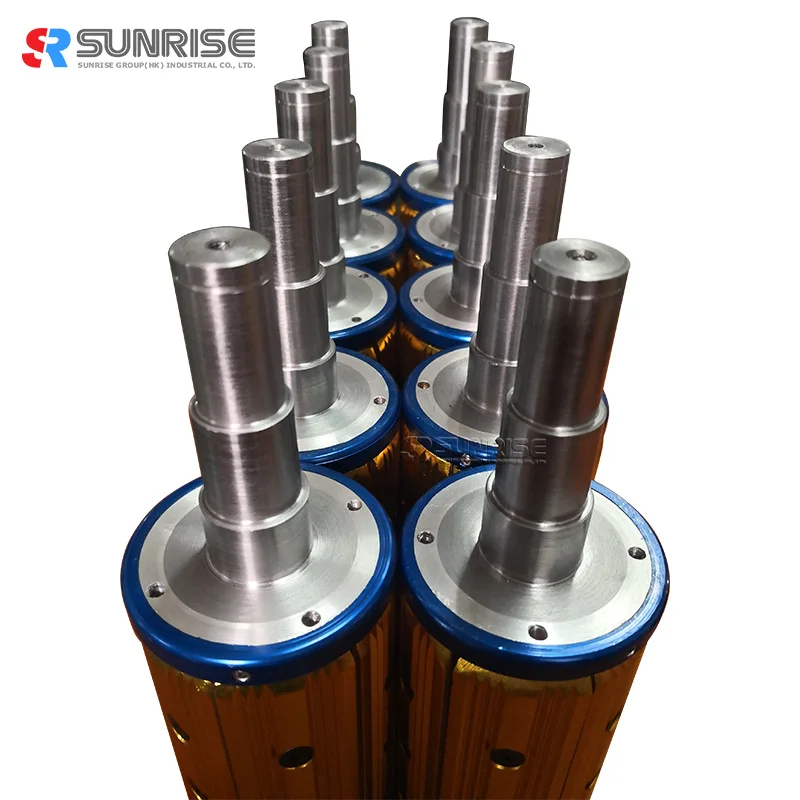

Sunrise Customized Pneumatic Air Shaft Expanding Air Shaft for Printing Machine


Air shaft is suitable for a full range of converting and web production operations, with a fixed leaf design for greatest core and web concentricity. It is ideal for core or coreless winding, and features a 360”ć radial expanding grip. Its rugged construction and design is available for any diameter or length, in steel, aluminum or lightweight carbon, with special designs available for heavy duty and extra lightweight applications. Shaft weights for your specific application are available upon request.

We manufacture to your specifications to suit your equipment, including cantilevered or custom designs. The SUNRISE Leaf Style air expanding shafts are guaranteed for one year against material and workmanship defects.


Lug type air shaft feature:

  • Expands instantaneously for fast roll mounting.
  • Grips cores securely without core or roll damage.
  • Used for unwind or rewind positions.
  • Optional web tail gripper.
  • Manual or automatic rotary union air supply.
  • Positive collapse for quick roll removal.
  • Positive drive and tension control.
  • Reliable performance.
  • Manufactured to your specifications to suit your equipment.
Lug type air shaft data:
Model External diameter without air infalting ( ¦µmm) External diameter with air inflating ( ¦µmm) Apply to reel pipe with internal diameter as below( ¦µmm)
3" ¦µ74~75 ¦µ78 ¦µ75.5~ ¦µ78
4" ¦µ99 ¦µ105 ¦µ101~102
5" ¦µ125 ¦µ130 ¦µ126~128
6" ¦µ150 ¦µ154 ¦µ151~153
8" ¦µ220 ¦µ206 ¦µ202~ ¦µ204
10" ¦µ250 ¦µ260 ¦µ252~ ¦µ256
12" ¦µ300 ¦µ310 ¦µ302~ ¦µ305

 Basic Structure:

  Working Drawing:

Lug type air shaft weight calculation:
L1(working width)+100 length calculation 3" other size
600-1000mm 11~16(kg) For special calculating
1000~1300mm 16~20(kg)
1300~1600mm 20~24(kg)
1600~2000mm 24~30kg

* Printing systems: conveyors and in-feeders
*Wood-working systems: saws, wood-working machine, laminators
* Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
* Testing systems: lab machines, durability testers, measuring systems
* Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
* Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.
