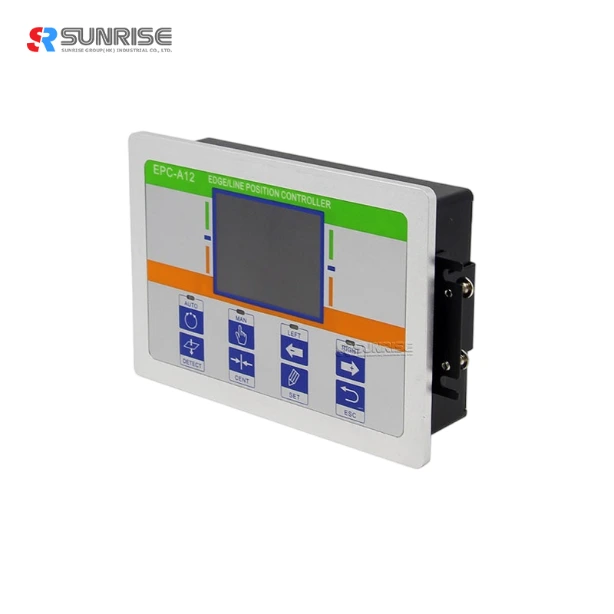

    Alibaba The Latest SUNRISE High Class EPC- A12 Web Position Controller #controller



    Alibaba The Latest SUNRISE High Class EPC- A12 Web Position Controller



    Web Guiding Controller Feature:



    EPC-A12 Servo Web Guide Control System which compatible with different type of web guide sensors and actuator, support EPC (edge), LPC(line), CPC (central) and SPC(S-shaped)...etc web guiding. With large color touch screen as HMI, easy operation, elegant appearance. With set guide and online help system. Easy to operate this system with basic setting for the first time.#controller

     #Web Guiding Controller

    Web Guiding controller Function:



    1.High performance servo motor vector driving with quick response speed, support direct torque control,
    accel-decel,speed limited
    2.With high-speed CUP calculation which support EPC (edge), LPC(line), CPC (central) and SPC(S-shaped)...
    etc web guiding
    3.Compatible with Ultrasonic sensor, photoelectric sensor, CCD sensor.
    4.Large color touch screen with HMI, easy operation.
    5.Integrated set-up guide and help system, there is help button for each operate page.
    6.Actuator adopt servo motor to drive ball screw which with high accuracy, less noisy and maintenance-free.
    7.Actuator adopt servo motor to drive ball screw which with high accuracy, less noisy and maintenance-free.
    8.With 3-way high speed analog input which can connect two analog sensor and one way external control simulation.#controller
    9.With 3 optical isolation switch input which can set different function.
    10.Multiple software and hardware protection measures with stable operation and strong anti-interference ability.
    There are different emergency solutions for the failure of each component, to ensure it work with 24 hours
    11.Flexible installation methods.#controller

    IEC1000 - 4 - 2,¡À15Kv ( Air ),¡À8Kv ( Contact ) #Web Guiding Controller



    Web Guiding Controller data:

    Power supply   DC24V ~45V ,Standard 24V

     Motor driving ability

     AC24V-45V, 10A Max
    Encoder power supply D15v, 200mA Max   Analog input   3-way 0~5V, impedance20K
    Sensor voltage DC12V, 350mA Max Correction response time   0.5ms
    Analog input resolution  12-bit ADC  On-off input   3-way NPN
    Correction method  line/edge/central/s-shape   compatible sensor   ultrasonic, photoelectric, CCD
    Actuator speed    1mm/s~75mm/s  Actuator thrust  100KgF~1500KgF
     ESD protection

    IEC1000 - 4 - 2,¡À15Kv ( Air ),¡À8Kv ( Contact )

    Screen display

    2.8 inch 260k color or 4.3 inch 260k color
    HMI type

    TFT touch screen

    Protective  IP53

    Installation :

    Alibaba The Latest SUNRISE High Class EPC- A12 Web Position Controller #controller

    Web Guiding Control system:

    Web guide controller11 4



    Alibaba The Latest SUNRISE High Class EPC- A12 Web Position Controller #controller



    Web guide controller11 6

    * Printing systems: conveyors and in-feeders

    *Wood-working systems: saws, wood-working machine, laminators
    * Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
    * Testing systems: lab machines, durability testers, measuring systems
    * Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
    * Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.



    Alibaba The Latest SUNRISE High Class EPC- A12 Web Position Controller #controller



    Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?

    You’ve come to the right place!

    Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!



    Alibaba The Latest SUNRISE High Class EPC- A12 Web Position Controller #controller

    Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...



    Alibaba The Latest SUNRISE High Class EPC- A12 Web Position Controller #controller



    Alibaba The Latest SUNRISE High Class EPC- A12 Web Position Controller #controller



    Alibaba The Latest SUNRISE High Class EPC- A12 Web Position Controller #controller



    1.    When can I get the quotation?



    We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.



    2.    How should I place the order?



    Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.



    3.    What’s your MOQ basis?



    Normally, we don’t have MOQ request, except the rollers.



    4.    What about the lead time for production?



    Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days



    5.    What is the term of delivery?



    We can arrange with EXW, FOB, CIF¡­etc. You can choose the most convenient one or cost-effective way.
