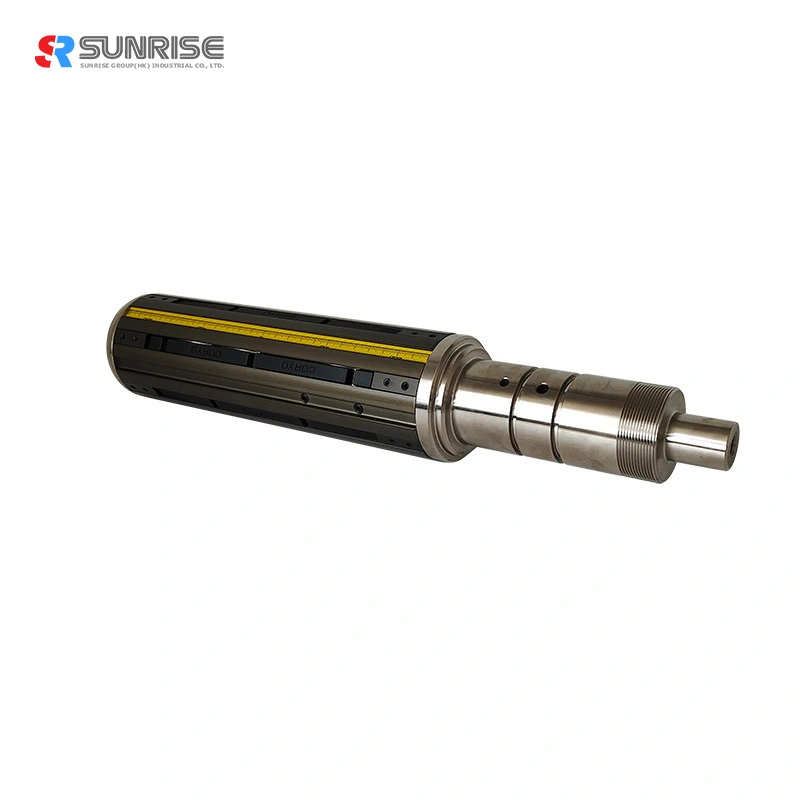

The strip material of this strip type air inflated shaft is made of rubber with good clamping elasticity, so it can keep better concentricity, the strip type air inflated shaft body material is hard aluminum alloy or carbon steel, for which kind of shaft body material to use, it depends on material's weight, this strip type air inflated shaft can be used in the cutting, printing, rewinding, unwinding, labeling, and the other materials... Sunrise manufactures to your specificized strip type inflated air shaft to suit your equipment, including cantilevered or custom designs. The strip type air inflated shafts are guaranteed for one year against material and workmanship defects.

    oops...!

    no product data.

    Go to homepage
    微信图片_20231209112413

    Strip type air inflated shaft Feature

    ● Multiple external expansion elements to grip the inside diameter of any core material.

    ● Gripping elements are activated by simultaneously inflating bladders with a single air valve.

    ● While bladders rarely fail, the processes to replace external bladders are simple and quick.

    ● Hard rubber elements are standard; aluminum is available to suit various applications.

    ● Light weight of shaft easy to lift by operator

    Specification

    Strip type air inflated shaft data:

    Strip type Air Inflated Shaft for labeling machinery 7

    Model

    External diameter without air inflating ( Φ mm)

    External diameter with air inflating ( Φ)mm

    Apply to reel pipe with internal diameter as below( Φ)mm

    2"

    Φ49

    Φ52~ Φ54

    Φ50~51

    3"

    Φ74~ Φ75

    Φ78~80

    Φ75.5~ Φ76

    4"

    Φ99~100

    Φ104~ Φ106

    Φ101~102

    5"

    Φ125

    Φ130~133

    Φ126~ Φ127

    6"

    Φ150

    Φ154~156

    Φ151~ Φ153

    8"

    Φ200

    Φ206~264

    Φ202~204

    10"

    Φ250

    Φ260~ Φ264

    Φ252~256

    12"

    Φ300

    Φ308~310

    Φ302~305

    Strip type air inflated shaft weight calculation

    L2 (Shaft body)+100 length calculation

    2"

    3"

    6~12"

    600~1000mm

    8~12 (kg)

    15~20(kg)

    For special calculating

    1000~1300mm

    12~14(kg)

    20~25(kg)

    1300~1600mm

    14~16(kg)

    25~30(kg)

    1 600~2000mm

    16~20(kg)

    30~38(kg)

    Strip type air inflated shaft loading capacity

    Material

    2"

    3"

    6"

    Aluminum alloy

    /

    300~500(kg)

    800~1200(kg)

    Steel 45#

    100(klg) Max.

    800~1000(kg)

    1200~1800(kg)
