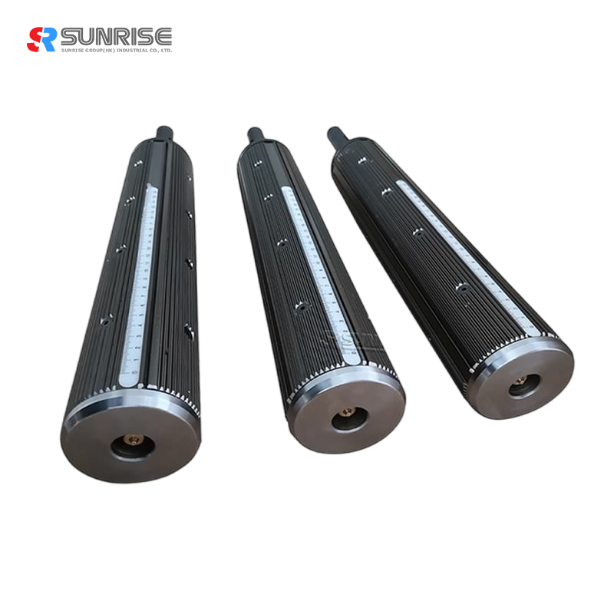

Lug type air shaft 1 1
Lug type air shaft 1 1

Lug type air shaft 1

    oops...!

    no product data.

    Go to homepage

    Lug type air shaft 1 2


    SUNRISE Custom Make High Accuracy Price List Steel Material Slitting Shaft For Package Machine


    Air shaft is suitable for a full range of converting and web production operations, with a fixed leaf design for greatest core and web concentricity. It is ideal for core or coreless winding, and features a 360¡ã radial expanding grip. Its rugged construction and design is available for any diameter or length, in steel, aluminum or lightweight carbon, with special designs available for heavy duty and extra lightweight applications. Shaft weights for your specific application are available upon request.
    We manufacture to your specifications to suit your equipment, including cantilevered or custom designs. The SUNRISE Leaf Style air expanding shafts are guaranteed for one year against material and workmanship defects.


    Lug type air shaft feature:

    • Expands instantaneously for fast roll mounting.
    • Grips cores securely without core or roll damage.
    • Used for unwind or rewind positions.
    • Optional web tail gripper.
    • Manual or automatic rotary union air supply.
    • Positive collapse for quick roll removal.
    • Positive drive and tension control.
    • Reliable performance.
    • Manufactured to your specifications to suit your equipment.
    Lug type air shaft data:
    Lug type air shaft 1 3
    ModelExternal diameter without air infalting ( ¦µmm)External diameter with air inflating ( ¦µmm)Apply to reel pipe with internal diameter as below( ¦µmm)
    3"¦µ74~75¦µ78¦µ75.5~ ¦µ78
    4"¦µ99¦µ105¦µ101~102
    5"¦µ125¦µ130¦µ126~128
    6"¦µ150¦µ154¦µ151~153
    8"¦µ220¦µ206¦µ202~ ¦µ204
    10"¦µ250¦µ260¦µ252~ ¦µ256
    12"¦µ300¦µ310¦µ302~ ¦µ305

     Basic Structure:

    Lug type air shaft 1 4

      Working Drawing:

    Lug type air shaft 1 5

    Lug type air shaft weight calculation:
    L1(working width)+100 length calculation3"other size
    600-1000mm11~16(kg)For special calculating
    1000~1300mm16~20(kg)
    1300~1600mm20~24(kg)
    1600~2000mm24~30kg

    Lug type air shaft 1 6

    Lug type air shaft 1 7

    * Printing systems: conveyors and in-feeders
    *Wood-working systems: saws, wood-working machine, laminators
    * Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
    * Testing systems: lab machines, durability testers, measuring systems
    * Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
    * Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.


    Lug type air shaft 1 8


    Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?
    You’ve come to the right place!
    Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!


    Lug type air shaft 1 9

    Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc..


    Lug type air shaft 1 10


    Lug type air shaft 1 11


    Lug type air shaft 1 12


    1.    When can I get the quotation?


    We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please callus or tell us in your email, so that we can regard your inquiry priority.


     2.    How should I place the order?


    Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.


    3.    What’s your MOQ basis?


    Normally, we don’t have MOQ request, except the rollers.


    4.    What about the lead time for production?


    Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days.


    5.    What is the term of delivery?


    We can arrange with EXW, FOB, CIF¡­etc. You can choose the most convenient one or cost-effective way.
