    Differential Air Shaft 2

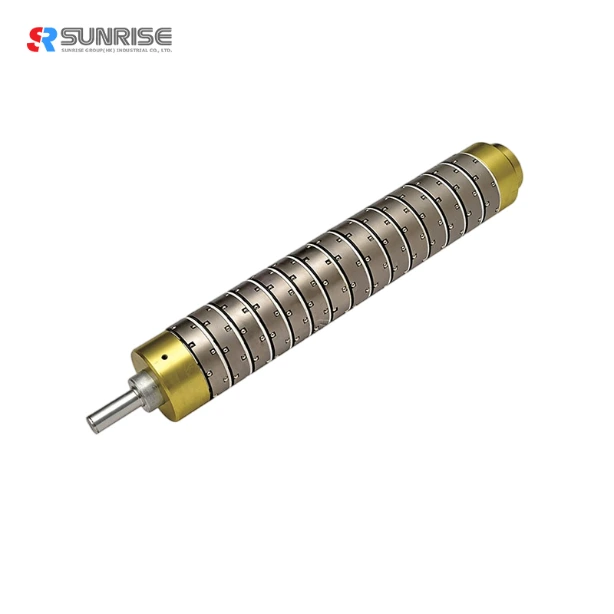

    Hot Selling Slitting Machine Air Shaft Expandable Shaft Differential Air Shaft


    What is an Air Shaft?


    Sunrise air Shafts are used in the manufacturing processes for fitting into a core onto which materials such as paper, card and plastic film are wound. An Air Shaft is designed so that, on fitting into a core, it can be readily expanded, thereby achieving a quick and firm attachment, it may also be easily deflated to facility easy withdrawal of the shaft after winding of product is complete. Their efficient design makes them ideal for mounting onto bearing housings to enable the winding or unwinding of rolls of stock material with the minimum of equipment down time. The advantage of using an Air Shaft is its ability to grip the core, without damage, whilst providing a positive interface to control the web via motors & brakes. Air Shafts are available as either Key/Lug Type (with bladder down the center) or Board/Leaf Type (bladders on the periphery of the shaft)


    Differential air shaft:


    Differential air shaft, as the main component of the slitter machine to complete the slitting of various materials. In the process of winding up, if the material thickness is uneven and the machine tension control is unstable, the coil material will be affected and the unwinding phenomenon and the tightness of the whole roll material will be inconsistent and the material will be damaged. The sliding air shaft and the air expansion shaft are the main body, and the central air pressure control is adopted to push out the three pistons inside the slip sleeve, thereby pushing each torque unit to expand outward, and setting each according to the inflation pressure. The slip torque value of the torque unit facilitates the control of the tension of each roll of material on the slit line, and can solve the unwinding phenomenon caused by the uneven thickness and the uneven tension after the stripping, or the inconsistency caused by the tightness Material damage, can be applied to slitting machine, rewinding machine reel for sliding shaft cutting metal foil, plastic film, paper, electronic materials and various composite materials, self-adhesive materials.



    Standard model:

    Differential Air Shaft 3

    Basic Parameter:

    • 3" standard model, main shaft diameter: dia 75mm
    • Working width: dia 78mm/MAX
    • Standard inner diameter: dia 75.5mm~76.8mm
    Differential Air Shaft 4

        Differential Air Shaft 5


    Differential Air Shaft 6


    * Printing systems: conveyors and in-feeders

    *Wood-working systems: saws, wood-working machine, laminators
    * Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
    * Testing systems: lab machines, durability testers, measuring systems
    * Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
    * Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.


    Differential Air Shaft 7


    Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?
    You’ve come to the right place!
    Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!


    Differential Air Shaft 8

    Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD  has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...


    Differential Air Shaft 9


    Differential Air Shaft 10

    Differential Air Shaft 11


    1.    When can I get the quotation?


    We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call

    us or tell us in your email, so that we can regard your inquiry priority.


     2.    How should I place the order?


    Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.


    3.    What’s your MOQ basis?


    Normally, we don’t have MOQ request, except the rollers.


    4.    What about the lead time for production?


    Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller

    which need about 15-30days.


    5.    What is the term of delivery?


    We can arrange with EXW, FOB, CIF¡­etc. You can choose the most convenient one or cost-effective way.
