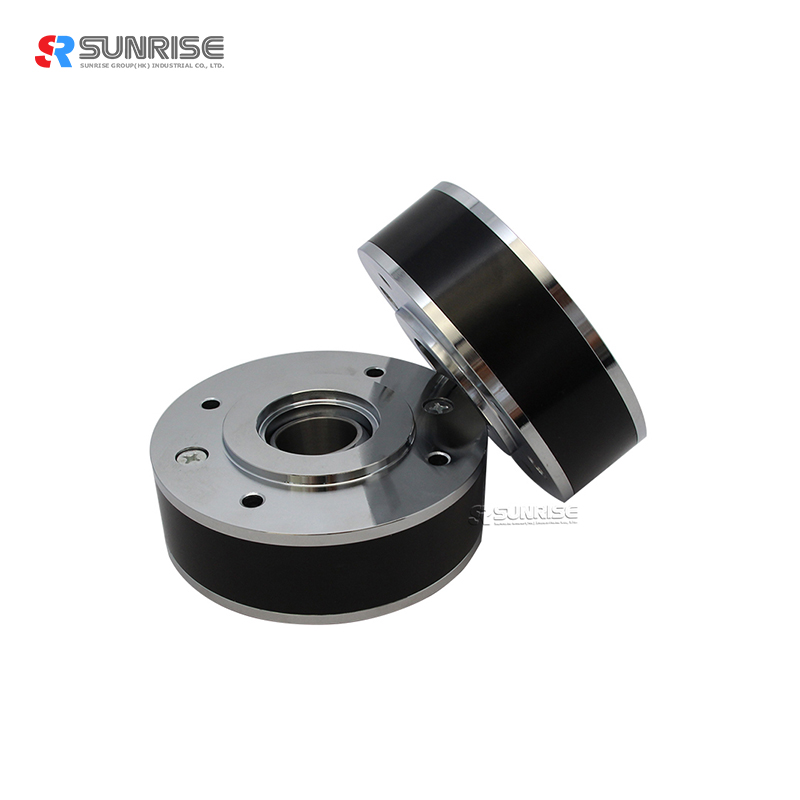

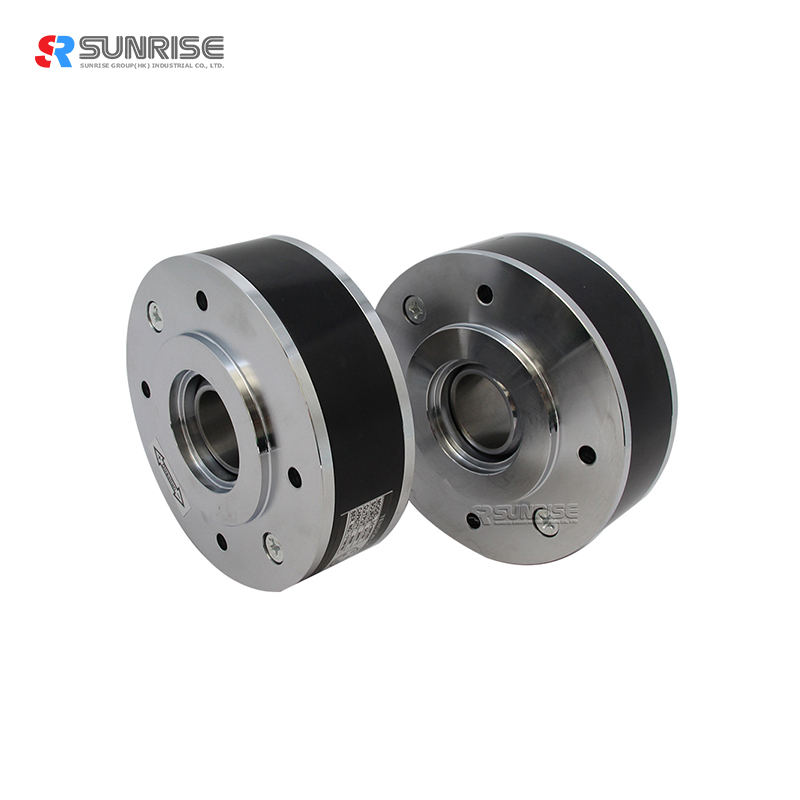

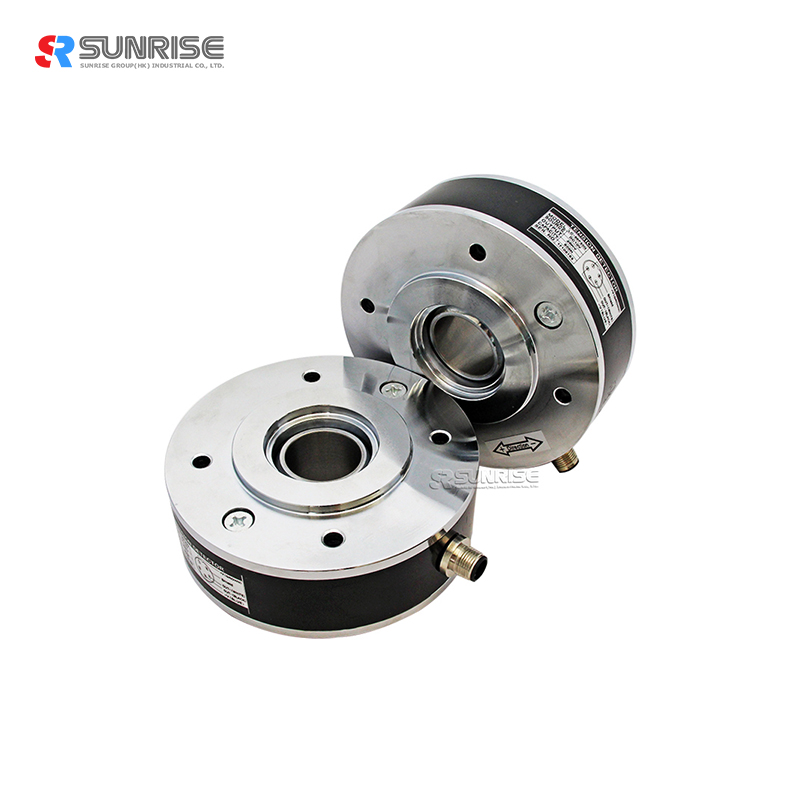

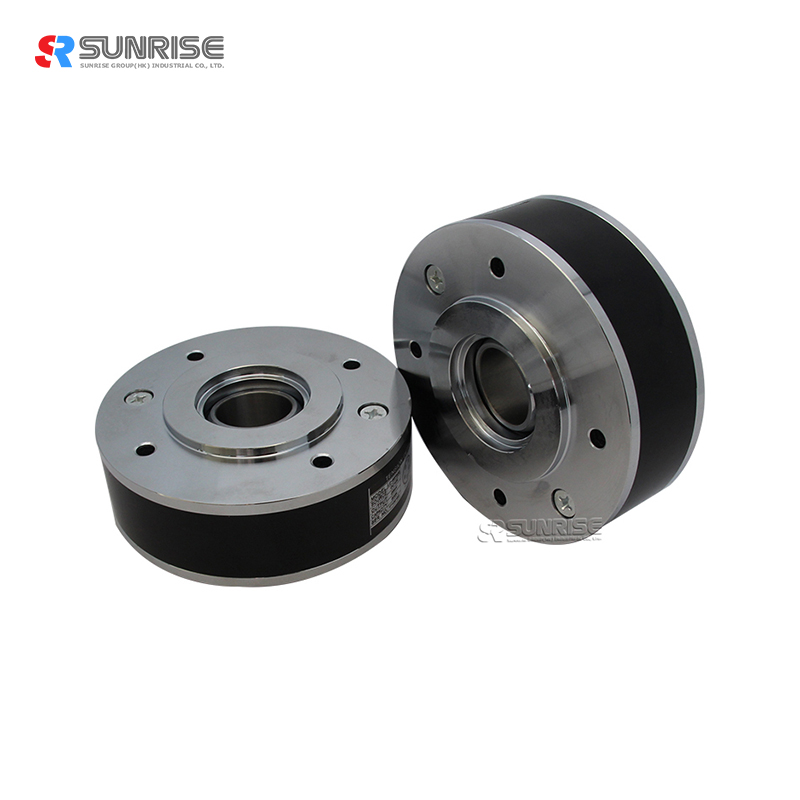

LC Flange type tension detector
LC Flange type tension detector
This flange type tension detector is electrically compatible with a stationary tension detector (LS-TD). It can be attached directly to the wall of equipment, minimizing the width of the equipment. This tension detector, with a smaller footprint than a stationary tension detector, can be used for more complicated material path line devices and for tension control with a high degree of freedom.
LC Flange type auto tension detectors are the product of over 10+ years of experience gained in the field of tension regulation.
LC Flange type tension detector Feature
LC Flange type tension detector specification
|
Model |
A |
B |
C |
D |
E |
F |
H |
|
F17 |
17 |
36 |
60 |
104 |
75 |
3 |
35 |
|
F20 |
20 |
36 |
60 |
104 |
75 |
3 |
35 |
|
F25 |
25 |
45 |
70 |
125 |
95 |
4 |
40 |
|
F30 |
30 |
45 |
70 |
125 |
95 |
4 |
40 |
LC Flange type tension detector parameter
|
Excitation voltage |
10V DC |
|
Output voltage |
2mv/V(Factory setting) |
|
Strain resistance value |
350Ω |
|
Strain resistance type |
Full-bridge |
|
Max. output signal |
150% TYP |
|
Synthetic error |
<0.5% |
|
Max. overloading capacity |
500% rated loading |
|
Detecting type |
Full-bridge |
