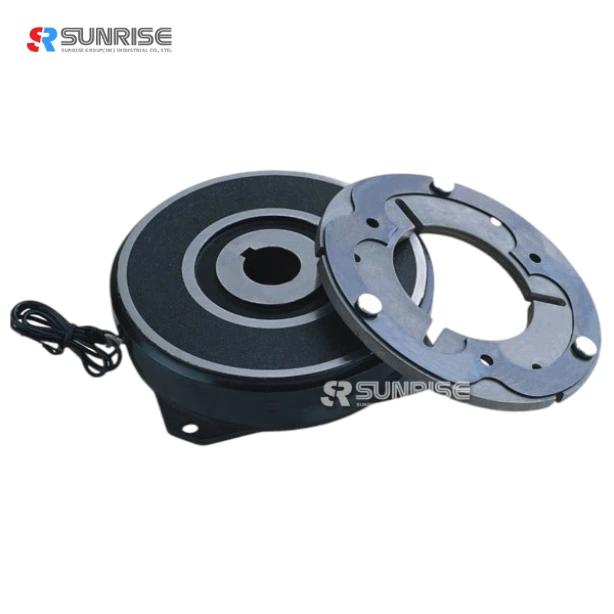

Electromagnetic clutch - FCI 1
Electromagnetic clutch - FCI 1

Electromagnetic clutch - FCI

    oops...!

    no product data.

    Go to homepage


    Electromagnetic clutch - FCI 2



    Electromagnetic Clutch FCI



    Electromagnetic clutch operation principle:



    Electromagnetic clutches operate electrically, but transmit torque mechanically. This is why they used to be referred to as electro-mechanical clutches. Over the years, Sunrise became known as electromagnetic versus electro mechanical, referring more about their actuation method versus physical operation. Since the clutches started becoming popular over 60 years ago, the variety of applications and clutch designs has increased dramatically, but the basic operation remains the same.

    Single-face clutches make up approximately 90% of all electromagnetic clutch sales. This article mainly deals with these types of clutches. Alternative clutch designs are mentioned at the end of this article.



    Electromagnetic clutch data:

    Model FCI-006 FCI-015 FCI-025 FCI-050 FCI-100 FCI-200 FCI-400

    Static Torque[kgf-m(N-m)

    0.6(6) 1.5(15) 2.5(25) 5(50) 10(100) 20(200) 40(400)
    Dynamic Torque [kgf-m](N-m) 0.5(5) 1.0(10) 2.0(20) 4.0(40) 8(80) 16(160) 32(320)
    Power [DC24 V] (W) at 20¡ãC 11 15 20 25 35 45 60
    Weight 0.46 0.83 1.5 2.76 5.1 9.3 17
    Maximum spped (r/min) 1800

                      Dimension    A    74 93 116 144 180 228 280
    B 70 88 110 137 172 217 257
    C 50 60 76 95 120 158 164
    D 35 47 55 67 90 107 127
    E 35 45 52 65 80 100 117
    F 90 110 135 165 210 265 310
    G 80 98 122 150 190 240 290
    H 4.5 5.5 6.5 6.5 6.5 8.5 10.5
    K M3 M4 M5 M6 M8 M10 M12
    L 30.3 33.9 38.8 44.5 50.7 60.5 61.3
    M 22 24 27 30 34 40 48
    N 6.3 7.4 8.8 11 13.2 16.5 20.9
    O 5 6.5 8 11 14 17.5 21.9
    P 1.6 2 2 2.5 3 3.2 3.7
    R 24 26.5 30 33.5 37.5 44 48.5
    T 2 2.5 3 3.5 3.5 4 4.5
    a 0.2 0.2 0.2 0.3 0.3 0.3 0.3
    b 4 5 5 7 7 10 12
    t 13.8 17.3 22.3 28.3 33.3 43.3 53.3
    d 12 15 20 25 30 40 45





    Electromagnetic clutch - FCI 3

    * Printing systems: conveyors and in-feeders

    *Wood-working systems: saws, wood-working machine, laminators
    * Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
    * Testing systems: lab machines, durability testers, measuring systems
    * Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
    * Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.



    Electromagnetic clutch - FCI 4



    Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?
    You’ve come to the right place!
    Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!



    Electromagnetic clutch - FCI 5

    Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...



    Electromagnetic clutch - FCI 6



    Electromagnetic clutch - FCI 7



    Electromagnetic clutch - FCI 8



    1.    When can I get the quotation?



    We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.



    2.    How should I place the order?



    Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.



    3.    What’s your MOQ basis?



    Normally, we don’t have MOQ request, except the rollers.



    4.    What about the lead time for production?



    Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days.



    5.    What is the term of delivery?



    We can arrange with EXW, FOB, CIF¡­etc. You can choose the most convenient one or cost-effective way.
