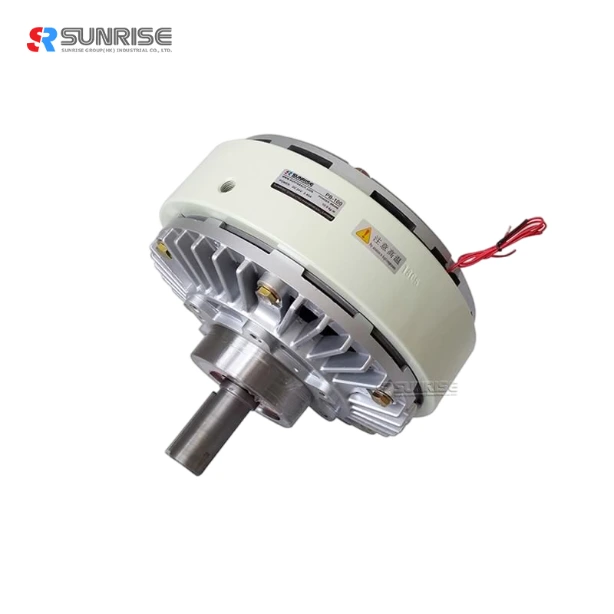

PB Magnetic Particle Brake
Magnetic Particle Brake Notes
1. Don’t overload, meanwhile cool to appropriate temperature
The value of the torque/rotational speed/slip power should be less than the rated value. The cooling mode(natural cooling/forced air cooling/water cooling) should depend on the maximum slip power when it works and the cooling air should pass the water and oil filter. The temperature detector and the alarm should be installed to prevent high temperature which can affect the service life of the magnetic powder.(the highest temperature is 80 degree).
2. Concerning the service life
The life of the magnetic powder clutch and brake rely on the life of the magnetic powder. Generally speaking, its service life is 4500-7500hours in the state of non-overloaded; but its service life can extend several times in some cases, such as: the working torque of the magnetic powder clutch/brake, relative slip rotational speed and slip power can be reduced to 50%-70% of the rated value. This is to say, the margin can be enlarged as soon as possible when designing.
CE Qualified Magnetic Particle Brake Data:
|
Model | PB-003 | PB-006 | PB-015 | PB-025 | PB-050 | PB-100 | PB-200 | PB-400 |
Rated torque[kgf-m](N-m) | 0.3(3) | 0.6(6) | 1.2(12) | 2.5(25) | 5(50) | 10(100) | 20(200) | 40(400) |
Capacity DC24V 75¡ãC | Current(A) | 0.53 | 0.81 | 0.94 | 1.24 | 2.15 | 2.4 | 2.7 | 3.5 |
Power (W) | 12.7 | 19.4 | 22.5 | 30 | 51.5 | 57.6 | 64.8 | 84 |
No. of hours set (S) | 0.08 | 0.08 | 0.1 | 0.12 | 0.13 | 0.25 | 0.37 | 0.4 |
Weight | 2.0 | 2.1 | 4.5 | 7.6 | 12.5 | 34 | 45 | 90 |
Maximum speed (r/min) | 1800 |
Weight of powder (g) | 7.5 | 10 | 20 | 33 | 60 | 140 | 225 | 370 |
|
Exterior Dimension | D1 | 120 | 134 | 152 | 182 | 225 | 290 | 327 | 395 |
D2 | 75 | 116 | 126 | 160 | 198 | 256 | 295 | 365 |
D3(g7) | 72 | 42 | 42 | 55 | 74 | 100 | 110 | 130 |
D4 | 64 | 64 | 64 | 78 | 100 | 140 | 150 | 200 |
L | 106 | 112.5 | 132 | 157 | 192 | 239 | 270.5 | 329.5 |
L1 | 22 | 26 | 29 | 43 | 55 | 65 | 69 | 92 |
L2 | 78 | 80.5 | 98 | 108 | 131 | 167 | 191.5 | 226 |
L3 | 6 | 14 | 15 | 17 | 30 | 28 | 30 | 35 |
L4 | 14 | 18 | 25.5 | 26 | 28 | 45.5 | 55 | 66.5 |
L5 | 12 | 12.5 | 14.5 | 15 | 18 | 26.5 | 26.5 | 35.5 |
d(h7) | 10 | 12 | 15 | 20 | 25 | 30 | 35 | 45 |
T | 11.5 | 13.5 | 17 | 22 | 28 | 33 | 38.5 | 48.5 |
W(p7) | 4 | 4 | 5 | 5 | 7 | 7 | 10 | 12 |
V | M3*0.6P*6L | M4*0.7P*8L | M5*0.8P*10L | M6*1P*12L | M10*1.5P*20L |
R | 6-M5*0.8P*10L | 6-M6*1P*10L | 6-M10*1.5P*20L | 8-M10 *1.5P*15L |
S | -- | 1/8 | 1/4 | 3/8 |
|
* Printing systems: conveyors and in-feeders
*Wood-working systems: saws, wood-working machine, laminators
* Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
* Testing systems: lab machines, durability testers, measuring systems
* Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
* Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.
