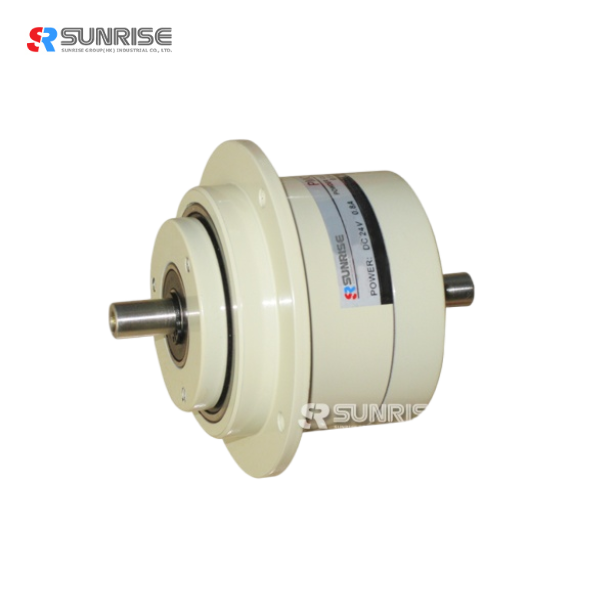

    Small Micro Magnetic Powder Clutch For Tension Control In Printing Machine



    High Quality Low Price Printing Machinery Part Magnetic Powder Clutch



    Magnetic particle clutch fields of application:

    Unwind brakes / winding

    Torque controls

    Speed controls

    Clutch proceedings

    Start controls

     #magneticpowderclutch

    Magnetic particle clutch and powder clutch key features:



    1.    Using antifriction, anti-erode super alloy magnetic powder as material.

    2.    Clutch and brake powder and slide rate is high which can slide neatly and is not arose shake.

    3.    The coil is covered by red H grade heat resistance material which is not easy to burn by lighter.

    4.    Our bearing is imported from Japan which can bear up 180 degrees.

      #magneticpowderclutch

    Magnetic particle clutch data:

    Micro Powder Clutch-PMC 3
    Model PMC-5 PMC-10 PMC-20 PMC-50 PMC-100
    Rated qorque[kgf-m](N-m) 0.05(0.5) 0.1(1) 0.2(2) 0.5(5) 1(10)

    Capacity

    DC24V

    (75¡ãc)

     Current(A)  0.35 0.47  0.55  0.8  1.0
     Power(W)  8.4 11.3  13  19  24
     No. of  hours set(S)  0.02 0.03  0.055  0.055  0.09
     Weight (kg) 0.67  0.88  1.27  2.3  4.1
     Area of heat release(cm)2       350
    Maximum speed (r/min)   1800


    Exterior

    dimension

     L1  77 83  95  111  113
     L2  16.5 18.5  22.5  25  10
     L3  8.5 8.5  9.5  12  15
     L4  4
     L5  13.5  16  19.5  22  29
     L6  28.5 29.5  34  37.5  46
     L7  5.5 5.5  6.5  6  7
     e1  10.5 12  15  18  24
     e2  20  16  13  10  9
     D1  70  76  85  100  128
     D2  114  90  75  66  60
     D3  50  56  65  80  98
     D4(h7)  48  54  63  78  98
     D5(h7)  40  42  48  60  80
     D6  30  34  40  50  70
     d(g6)  5  7  9  12  15
     T  4.5  6.5  8.5  11.5  16.5

    Installation:

    Micro Powder Clutch-PMC 4



    Micro Powder Clutch-PMC 5



    Small Micro Magnetic Powder Clutch For Tension Control In Printing Machine

    *Textile machinery: fiber twisters, treatment machines, weaving machines
    * Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
    *Machine tool systems: lathes,
    * Millers, steel extruders, CNC lathes, specialized machinery
    * Transportation equipment: hoists, feeders, conveyors, rollers, winders
    * Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines

    Small Micro Magnetic Powder Clutch For Tension Control In Printing Machine



    Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty?

    You’ve come to the right place!

    Established in 2003 and located in Dongguan city, SUNRISE GROUP INDUSTRIAL CO., LTD is a professional manufacturer and trader of powder clutches, powder brakes, electromagnetic clutches, electromagnetic brakes, air clutches, air brakes, air shafts, safety chucks, rollers and tension controllers. You name it, we specialize in it!



    Small Micro Magnetic Powder Clutch For Tension Control In Printing Machine

    Due to the positive image and quality products, SUNRISE GROUP INDUSTRIAL CO., LTD  has gained a large share of the market, along with the products sold in over 30 countries and regions, including US, Mexico, Colombia, German, UK, Australia, Italy, Spain, Portugal, Russia, Korea, Malaysia and eastern European countries etc...



    Small Micro Magnetic Powder Clutch For Tension Control In Printing Machine



    Small Micro Magnetic Powder Clutch For Tension Control In Printing Machine



    Small Micro Magnetic Powder Clutch For Tension Control In Printing Machine



    1.    When can I get the quotation?

    We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.



    2.    How should I place the order?

    Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.



    3.    What’s your MOQ basis?

    Normally, we don’t have MOQ request, except the rollers.



    4.    What about the lead time for production?

    Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days.



    5.    What is the term of delivery?

    We can arrange with EXW, FOB, CIF¡­etc. You can choose the most convenient one or cost-effective way.
