    Electromagnetic clutch operation principle:



    Electromagnetic clutches operate electrically, but transmit torque mechanically. This is why they used to be referred to as electro-mechanical clutches. Over the years, Sunrise became known as electromagnetic versus electro mechanical, referring more about their actuation method versus physical operation. Since the clutches started becoming popular over 60 years ago, the variety of applications and clutch designs has increased dramatically, but the basic operation remains the same.

    Single-face clutches make up approximately 90% of all electromagnetic clutch sales. This article mainly deals with these types of clutches. Alternative clutch designs are mentioned at the end of this article.



    Electromagnetic clutch data:

    Electromagnetic clutch FCD-1 3

    Electromagnetic clutch FCD-1 4

    MODEL FCD-1(-2)-006 FCD-1(-2)-015 FCD-1(-2)-025 FCD-1(-2)-050 FCD-1(-2)-100 FCD-1(-2)-200 FCD-1(-2)-400
    Static Torque[kgf-m](N- m)                                   0.6(0.6) 1.5(15) 2.5(25) 5.0(50) 10(100) 20(200) 40(400)
    Dynamic Torque[kgf-m](N-m) 0.5(5) 1.0(10) 2.0(20) 4.0(40) 8(80) 16(160) 32(320)
    Power[DC24V](W)at20¡ãC 11 15 20 25 35 45 60
    Weight(kg) 0.66(0.5) 1.19(0.91) 2.11(1.66) 3.8(3.05) 6.9(5.4) 13(10.5) 23.6(18.7)
    Maximum speed(r/min) 1800

    Radius A 63 80 100 125 160 200 250
    B 67.5 85 106 133 169 212.5 264
    C1 80 100 125 150 190 230 290
    B 67.5 85 106 133 175 215 270
    C2 72 90 112 137 175 215 270
    C3 35 42 52 62 80 100 125
    D1 12 15 15 20 20 25 25 30 30 40 40 50 50 60
    D2 12 15 20 25 30 40 50
    E1 26 31 41 49 65 83 105
    E2 33 37 47 52 62 74.5 101.5
    F 23 28.5 40 45 62 77 100
    S 38 45 55 64 75 90 115
    U 39.5 47 57 67 78 93.5 118.5
    Y 5 6 7 7 9.5 9.5 11.5
    Shaft H 24 26.5 30 33.5 37.5 44 51
    J 3.5 4.3 5 5.5 6 7 8
    K 2 2.5 3 3.5 4 5 6
    L1 43 51 61 70.5 84.5 100.5 118
    L2 31.5 35 41 46.5 53.5 64.5 75
    L3 51.5 60 71 86.5 103.5 124.5 145
    M1 22 24 27 30 34 40 47
    M2 15 20 25 30 38 45 54
    N1 20 25 30 40 50 60 70
    N2 2 2 3 2 3 5 6
    P 7.5 8 9 9 11.5 13 15.5
    T 6 8 10 12 15 18 22
    W 4 5 5 7 7 10 12
    Z1 4-90¡ã
    Z2 60¡ã  45¡ã  30¡ã 45¡ã 225¡ã
    m1 2-M4 2-M5 2-M5 2-M6 2-M8 2-M8 2-M10
    m2  3M4*0.7P*4L     l 3M4*0.7P*6L     4-M4*0.7P*8L 6-M5*0.8P*8L 4-M6*1P*12L 4-M6*1P*12L
    X 1.5 1.8 2.1 2.8 3.4 4.5 5.1
    a 0.2(¡À0.05) 0.3(+0.05/-0.1) 0.5(-0/-0.2)
    b 4 5 5 7 7 10 12
    t1 1.8 2.3 2.3 2.3 2.3 3.3 3.3 3 3.3 3.8 3.8 3.8 3.8 5
    t2 1.8 2.3 2.3 3.3 3.3 3.8 3.8



    Electromagnetic clutch FCD-1 5



    Electromagnetic clutch FCD-1 6

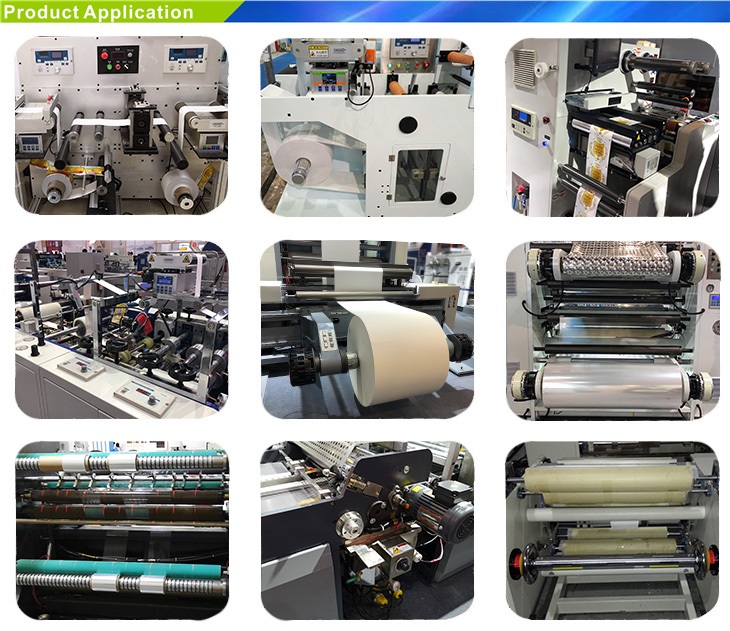

    * Printing systems: conveyors and in-feeders

    *Wood-working systems: saws, wood-working machine, laminators
    * Office equipment: electronic copy machines, calculators, fax machines, coin counters, printers
    * Testing systems: lab machines, durability testers, measuring systems
    * Food processing systems: meat cutting machines, cookie making machines, canning machines, noodle making machines
    * Others: speed reducers, electroplating machinery, physics and chemistry machines, paper-making machines, pulp processing machines.
