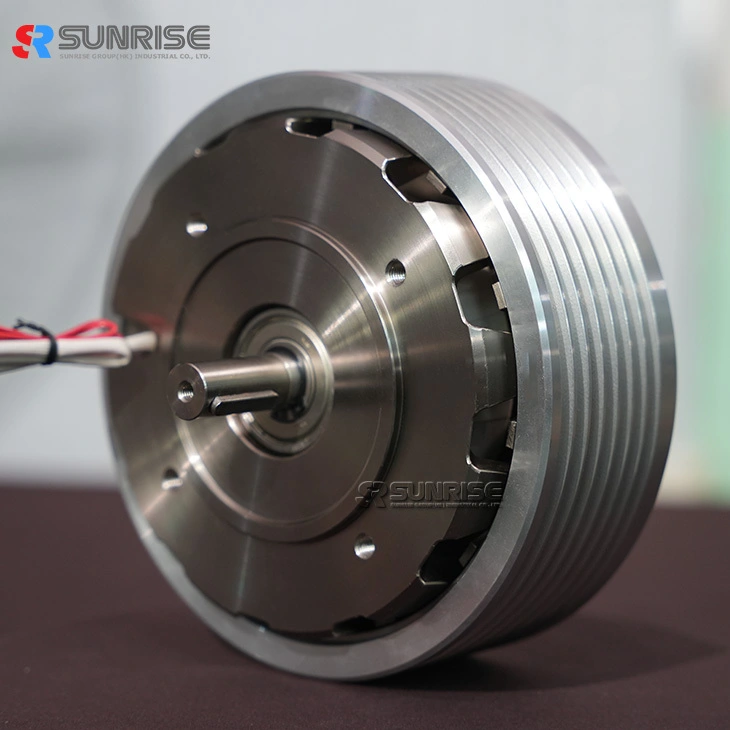

Sunrise outside rotation 2.5Nm Industrial Hysteresis brake for Film Machinery
Sunrise outside rotation Industrial hysteresis brakes have been designed to maintain high performance in continuous slip applications through maximum and continuous heat dissipation. The use of high wear resistant particles assures long operational life in high cycle applications.
5.0
Brand:
Sunrise Group
Model:
SGEB-3A
Allowable Rotating Speed:
6500 r/min
Weight:
3.5 kg
Power Consumption (75°C):
500 W
Rated Voltage:
DC24V
Rated Torque:
2.5 Nm
Color:
Silver
Payment:
EXW, FOB,,DAP, CIF...
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Specification
|
Model No. |
SGEB-1A |
SGEB-3A |
SGEB-10A |
SGEB-30A |
|
Rated Torque (Nm) |
0.6 |
2.5 |
9 |
26 |
|
Power Consumption(75°C) (W) |
250 |
500 |
1000 |
2000 |
|
Max Voltage (V) |
24 |
24 |
24 |
24 |
|
Rated resistance (Ω) |
50 |
28 |
13 |
10 |
|
Max speed (rpm) |
10000 |
6500 |
4500 |
3000 |
|
Hysteresis brake dimension (unit: mm) |
|||||
|
Model No. |
SGEB-1A |
SGEB-3A |
SGEB-10A |
SGEB-30A |
|
|
Installation
|
A |
55 |
68 |
92 |
122 |
|
B |
24.5 |
32 |
40 |
53.5 |
|
|
D1 h7 |
50 |
80 |
110 |
180 |
|
|
D2 |
75 |
112 |
168 |
260 |
|
|
D3 |
93 |
140 |
210 |
292 |
|
|
d1 k6 |
11 |
14 |
19 |
24 |
|
|
d2 |
M4 |
M5 |
M6 |
M8 |
|
|
d3 |
M5 |
M6 |
M8 |
M12 |
|
|
d4 |
60 |
100 |
130 |
215 |
|
|
a |
3 |
4 |
4 |
6 |
|
|
b |
2 |
2.5 |
3.5 |
4 |
|
|
c |
7 |
8 |
12 |
16 |
|
|
L1 |
23 |
30 |
40 |
50 |
|
|
L2 |
18 |
25 |
28 |
36 |
|
|
V P9 |
4 |
5 |
6 |
8 |
|
|
W+0.2 |
2.5 |
3 |
3.5 |
4 |
|
Hysteresis clutch|brake application
Textile machinery
Fiber twisters, treatment machines, weaving machines
Metal fishing systems
Extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
Machine tool systems
Lathes, Millers, steel extruders, CNC lathes, specialized machinery
Transportation equipment
Hoists, feeders, conveyors, rollers, winders
Paper- making systems
Bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines
Other machinery
Printing mchinery, wood-working machinerylaminators,testing machinery,food processing machinery, Li-battery machinerytire machinery
Application scenarios
Cautions on Safety for hysteresis clutch and hysteresis brake
01
Erroneous handling may cause a dangerous situation in which the possibility of death or serious injury is expected.
02
Never use the unit in an atmosphere in which inflammation or explosion is expected.
03
Sunrise Group is not responsible for any damage or trouble caused by repair, disassembly or modification of the product by any third party other than Sunrise Group.
